Characteristic
‧High accuracy that eliminates the risk of errors has improved the efficiency.
‧It has a large table space that can make it easy for operators to alternate products.
‧It a new design function-mode operates with high stability.
‧High-frequency output is very stable, and welds smoothly.
‧High frequency technology is highly used in canvas industry, as we’ve cumulated superior experience.
‧The machines are made with high quality spare parts imported by advanced countries.
‧It is equipped with ARC suppressor to protect the molds.
PVC Sheet Welding Test – hf welder
For processing various kinds of truck tents, canvas of agricultural, computer advertising canvas, and etc.
Machine Type : HG-1005AH
Operation Method : Pneumatic and control button
Application : Large PVC canvas and computer advertising canvas
Parallel Lines Canvas - rf welder
PVC or PEVA all can weld; Suitable for making passport holder, passport cover, insert of photo album, plastic book cover, etc
Machine Type : HG-2505AH
Operation Method : Pneumatic and control button
Application : Processing all kinds of large-scale PVC canvas, truck canvas, sun sail and rain sail, etc.
For processing various kinds of truck tents, canvas of agricultural, large PVC canvas, computer advertising canvas, and etc.
|
SPEC / MODEL
|
HG-805 AH
|
HG-1005 AH
|
HG-1205 AH
|
HG-1505 AH
|
HG-2505 AH
|
|
MAX. HF OUTPUT POWER
|
8 KW
|
10 KW
|
12 KW
|
15 KW
|
25 KW
|
|
IN-PUT POWER
|
16 KVA
|
20 KVA
|
24 KVA
|
30 KVA
|
50 KVA
|
|
OSCILLATION FREQUENCY
|
27.12 MHz
|
|
POWER SOURCE
|
3ψ AC220V/380V/415V 50Hz/60Hz
|
|
OSILLATION TUBE
|
7T69RB
|
E3069
|
E3130
|
8T85RB
|
|
|
RECTIFIER
|
SILICONE RECTIFIER
|
|
DISTANCE BETWEEN UPPER & LOWER ELECTRODE
|
100 mm
|
|

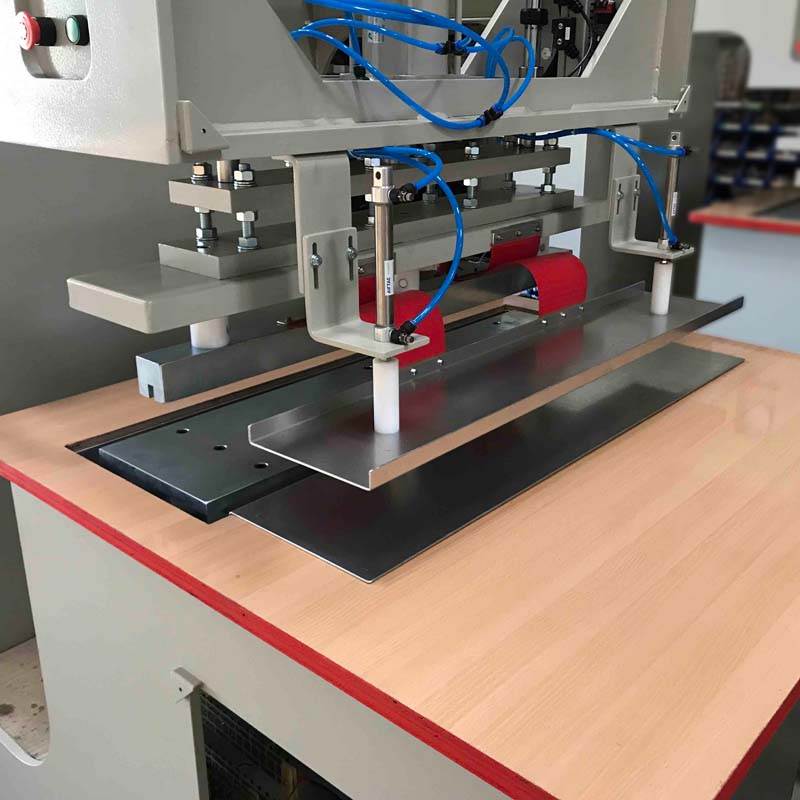

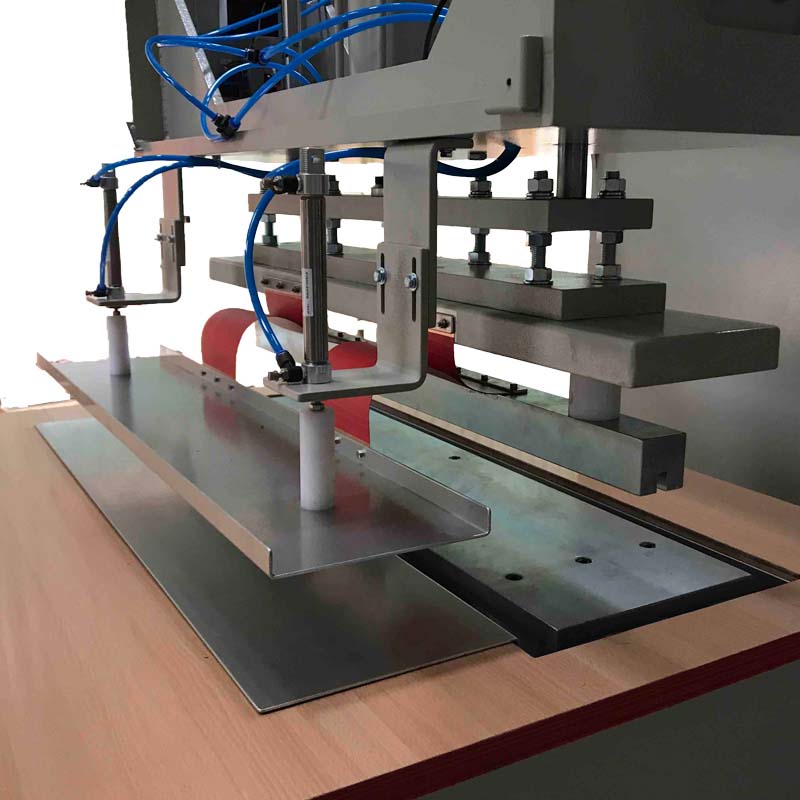

Upper Platen
|
50mm(W)*800mm(L)
|
50mm(W) X 1000 mm(L)
|
|
冷 卻 方 式
|
強制空冷式
|
|

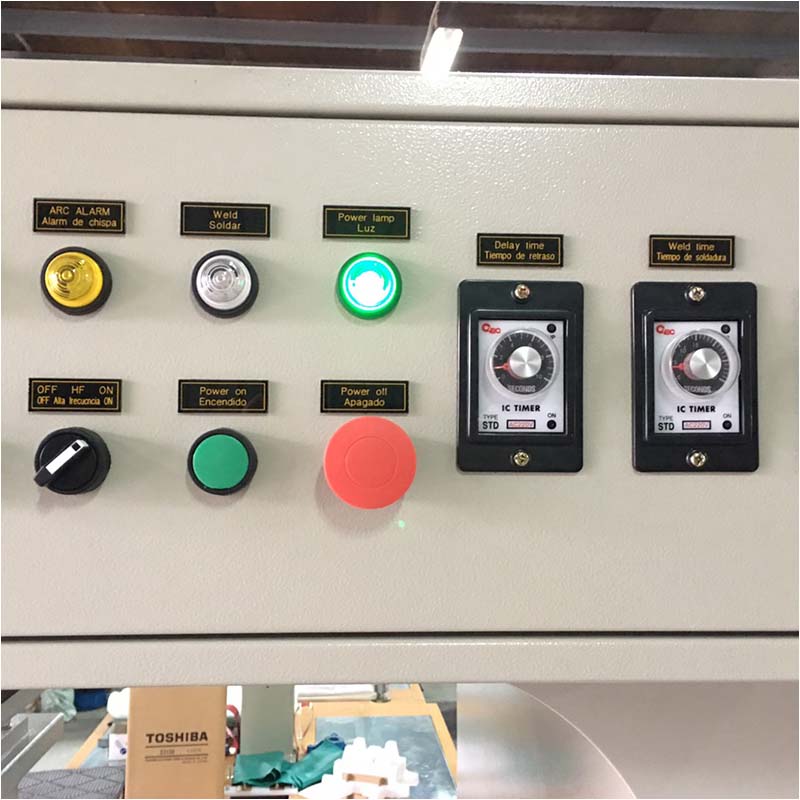

Electric Control
|
Relay VC, Relay Auto Control, VC Manual Adjustment
|
|
ARC Suppressor
|
Thyratron – NL5557
|
|
操作方式
|
氣壓式
|

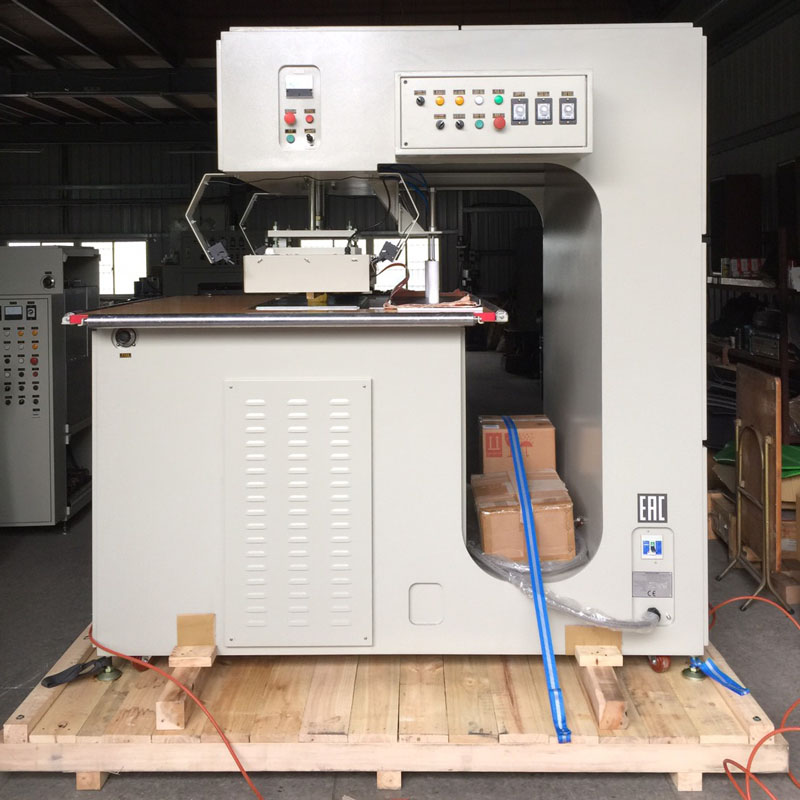

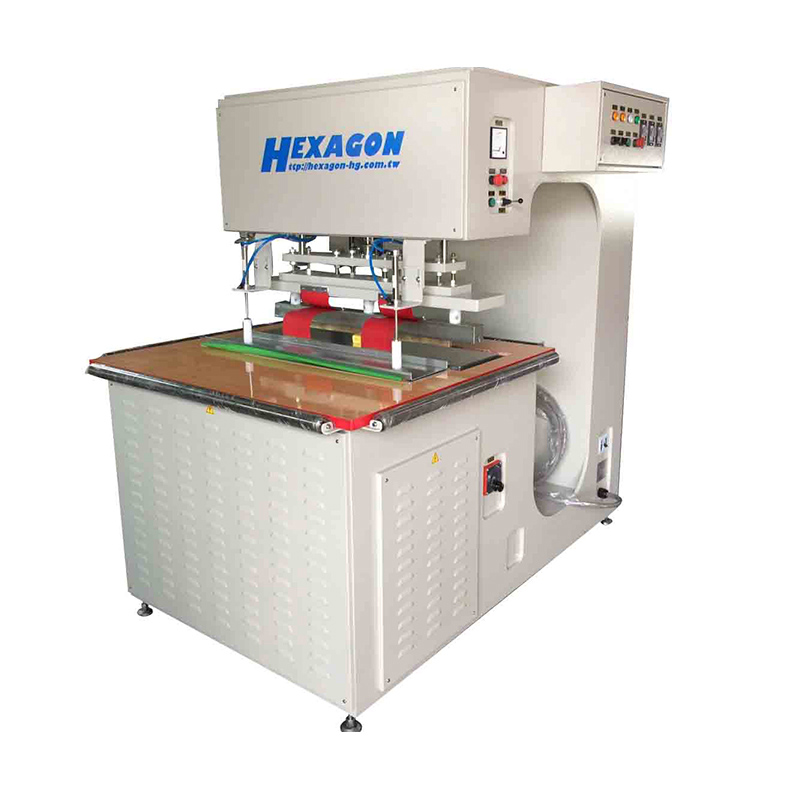

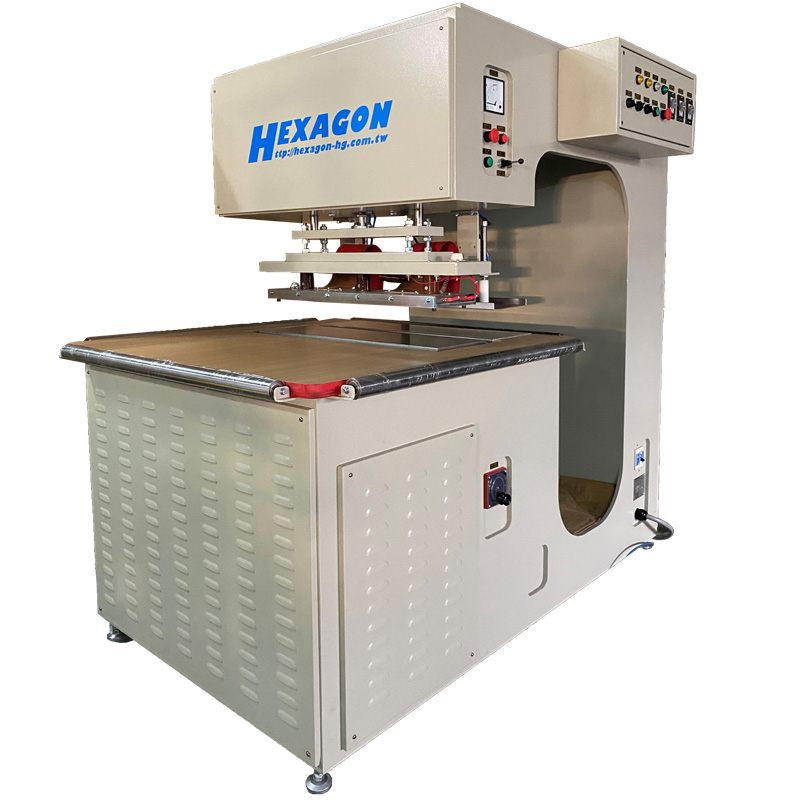

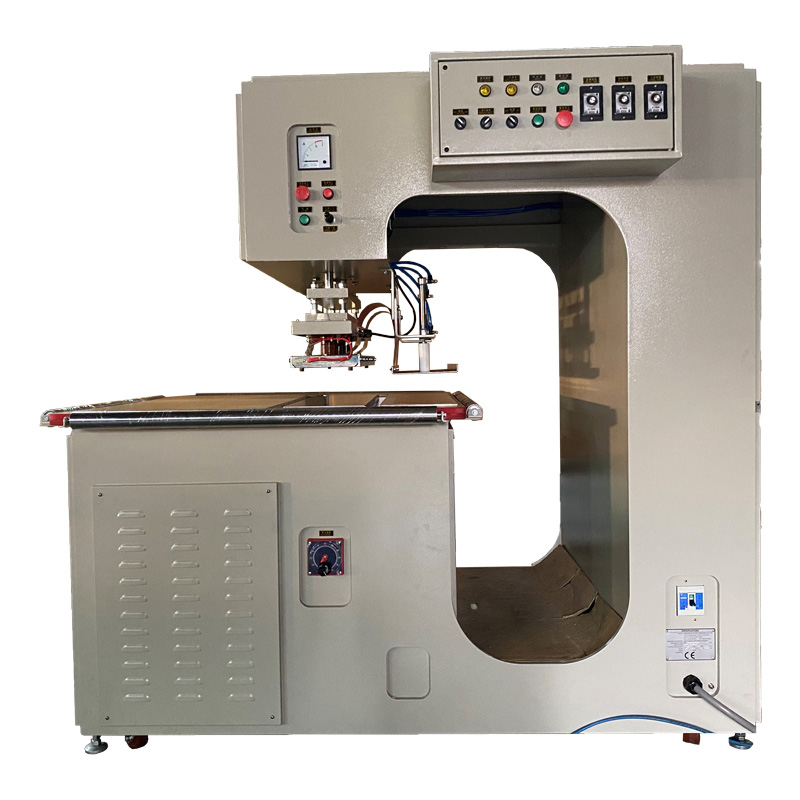

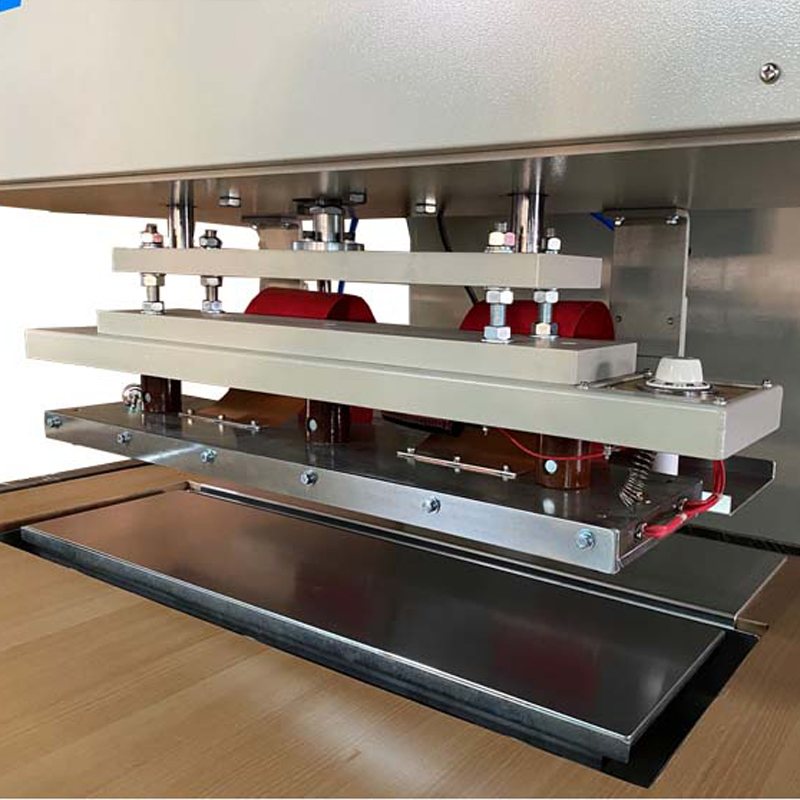

High Frequency Arm Hanging type Canvas machine is suitable for large canvas structure, large awning, large advertising canvas. High frequency plastic welding machine can apply on plastic application, which contain polarity of the molecular structure. Material which is applicable with high frequency welding are PVC, EVA, PA, PUR, PVDC. When the electric power is applied onto the material, it caused vibration of the molecule which generate heat and enhance melting and joint of the material. Under the frequency of 27.12MHz, the molecule consists of 27,120,000 times of movement per second. Without any imposing of external heat, the welding part creates a stronger bond than the original material.
