Characristic
‧It has a large table space that make it easy for operators to alternate products.
‧The high welding efficiency and is suitable for larger products.
‧Designed with the ergonomics that can reduce physical fatigue from long-term operation.
‧It has a new design and operates with high stability.
‧High-frequency output is stable, and weld smoothly.
‧The welds are made with spare parts imported by advanced countries with high quality.
‧It is equipped with ARC suppressor to protect molds.
PVC Vinyl Fabric Canvas – HF Canvas Welder
Heat Press, Heat Transfer, Hot Branding, Hot Stamping.
Output Power : 8kw / 10kw
Operation Method : Pneumatic or Hydraulic
Scope of Application : Truck sail, and swimming pool
Plastic Canvas – High Frequency Welding machine
PVC、PU、TPU、PEVA、PET-G all can be processed
Machine Type : HG-805S
Operation Method : Pneumatic or Hydraulic
Scope of Application : raincoats, tents, and advertising canvas
For processing various kinds of truck tents, canvas of agricultural, large PVC canvas, computer
advertising canvas, and etc.
| Spec / Model |
HG-805 S
|
HG-1005 S
|
|
H.F Output Power
|
8 KW
|
10 KW
|
|
In-Put Power
|
15 KVA
|
20 KVA
|
|
Frequency
|
27.12 MHz
|
|
Power Source
|
3ΦAC220V/380V/415V/440V 50Hz/60Hz
|
|
Oscillation Tube
|
7T69RB
|
E3069
|
|
Rectifier
|
Silicon Rectifier
|
|
Press Stroke
|
100 mm
|
|
Throat Deep
|
410 mm
|
|
Electrode Holding Plate
|
40mm(W)X800mm(L)
|
|
Lower Electrode
|
200mm(W)X1000mm(L)
|
|
Operation
|
Pneumatic or Hydraulic
|

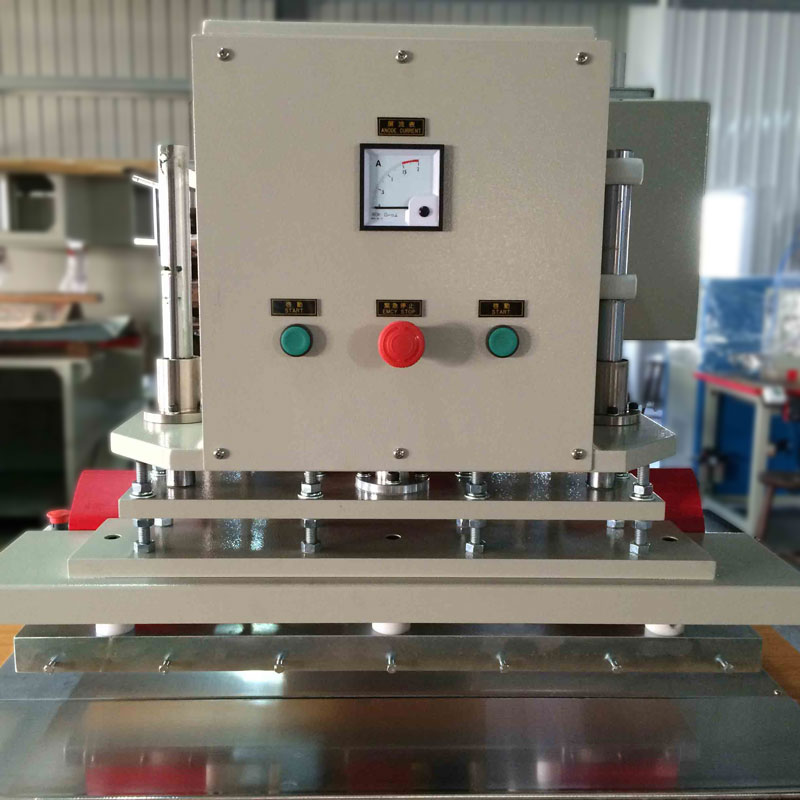

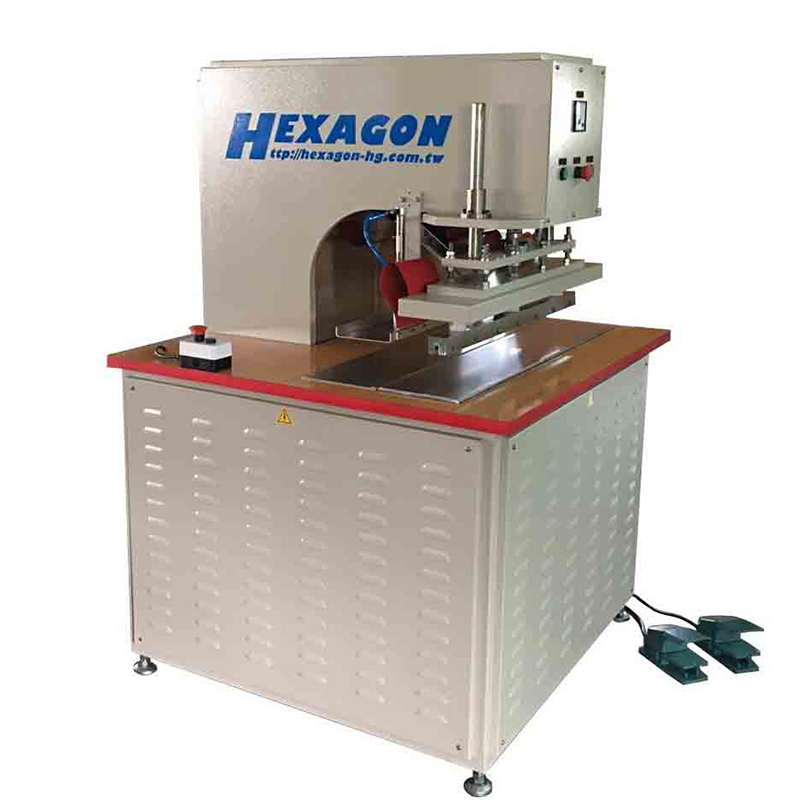

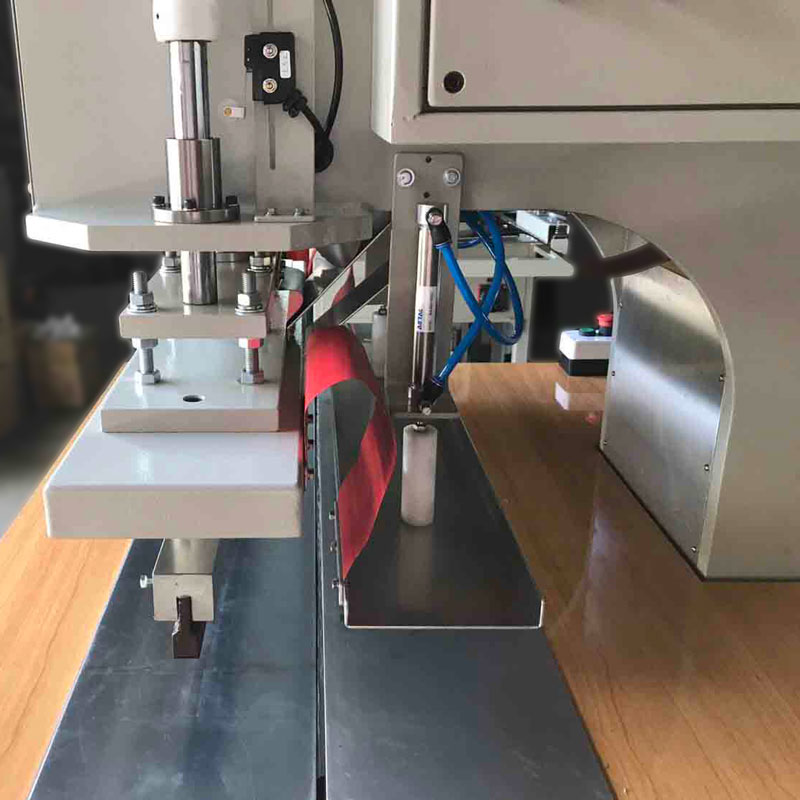

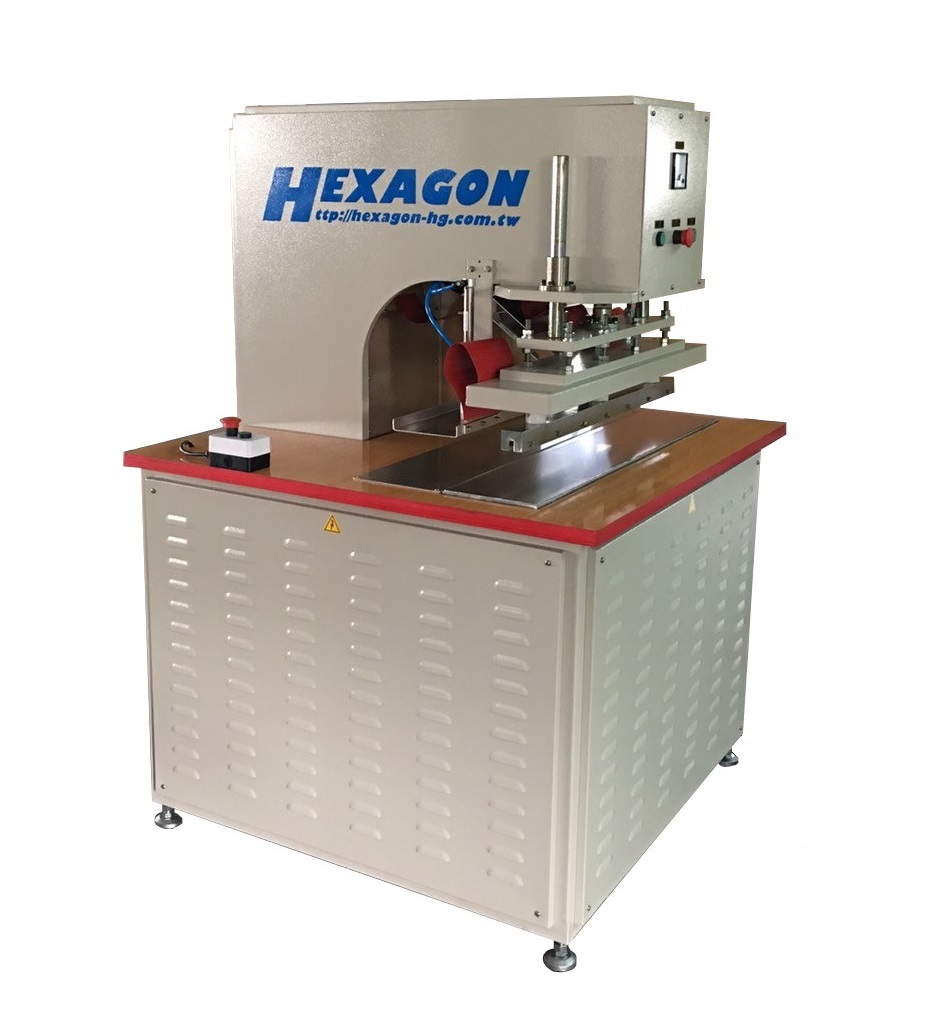

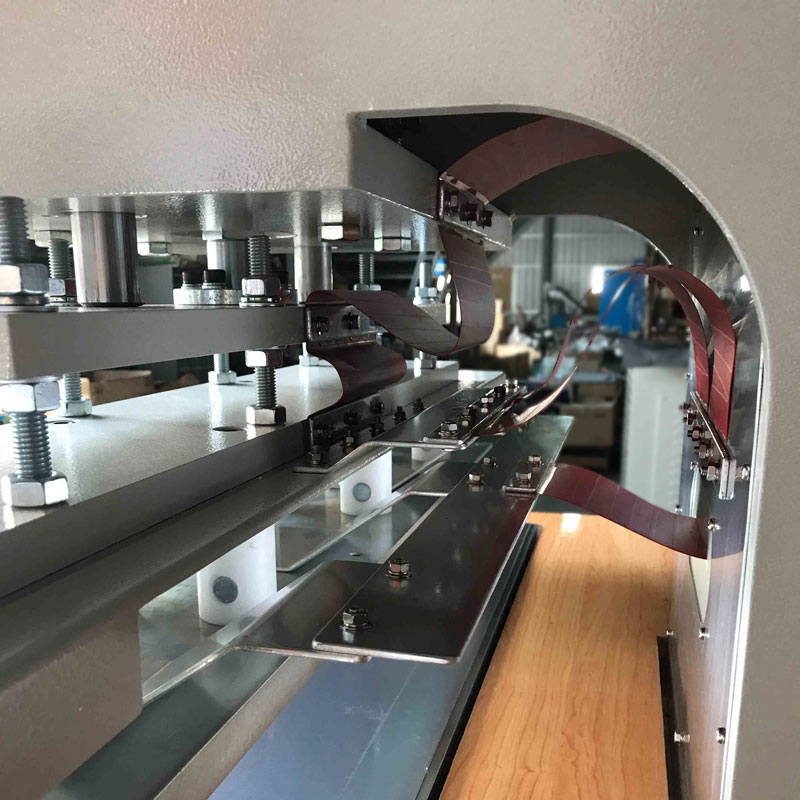

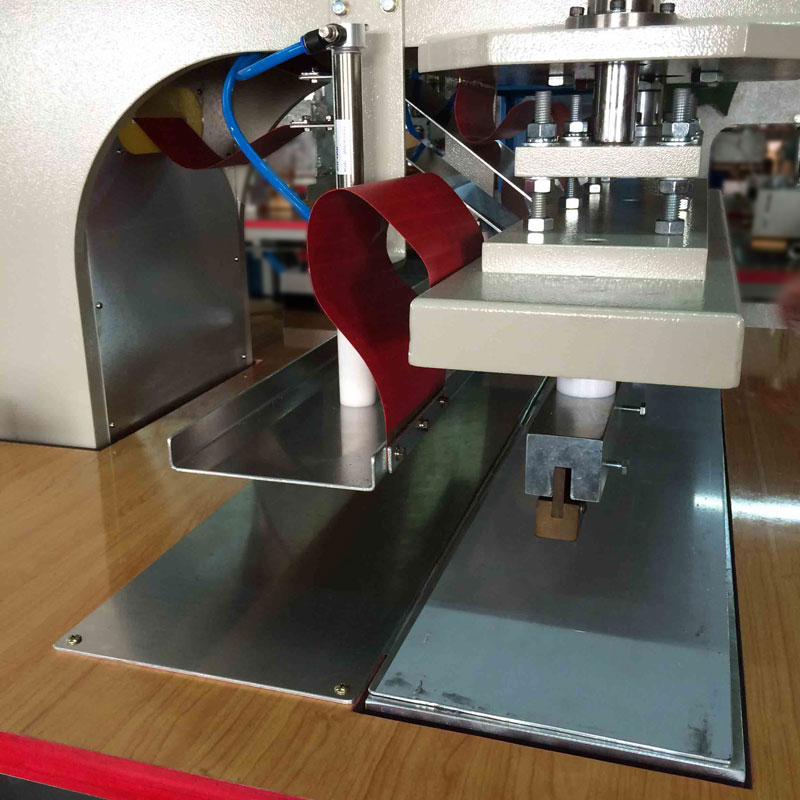

The Deep Throat Type Canvas Welding is the high frequency welding specially designed, in order to meet the demands of canvas tents. Since this weld has a great depth, it can weld larger size products such as tents, curtains, awnings, etc. The Deep Throat Type has not only high efficiency for welding canvas but also quality. Depends on customers' demands, this machine can adapt different molds to extensive applications. For customers who manufacture oversized canvas products, our deep throat welding type is the wise
