Characteristic
This machine using newest circuit is very high in efficiency, strong in welding and less in electric wave leakage. It is also equipped with a sensitive arc suppressor device which can minimize damage on material and electrode. Also the quality components make these machines work very smoothly and precisely.

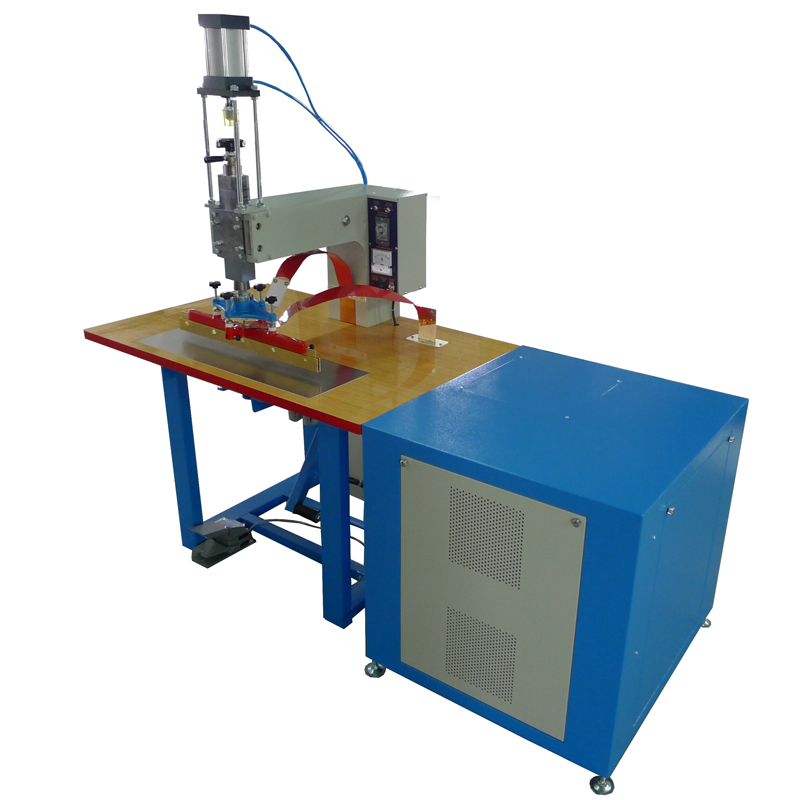

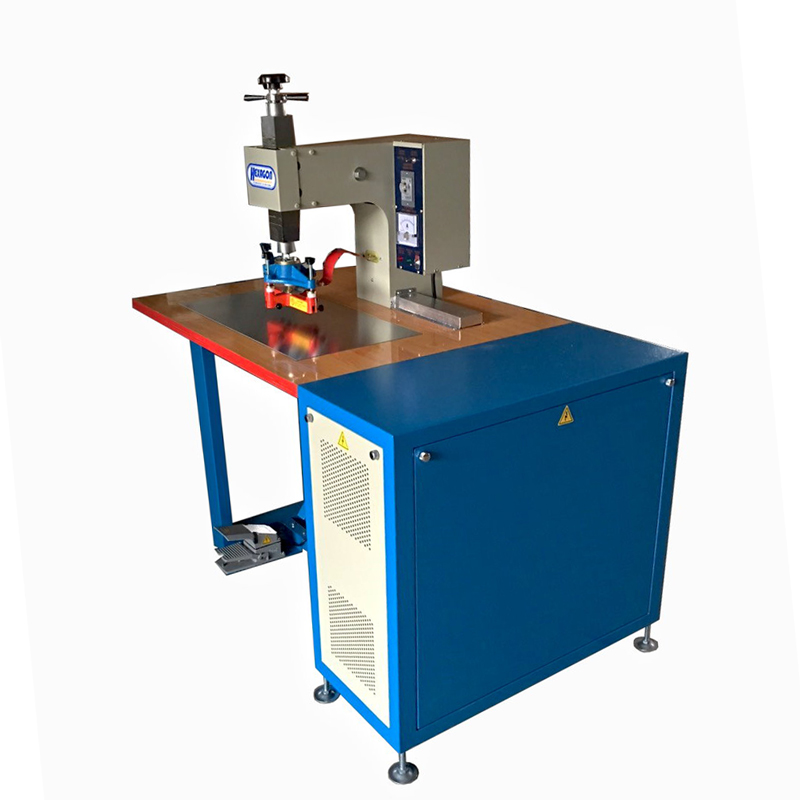

PVC Tarpaulin - Radio Frequency Welding Machine
It is especially designed for procession on various for tent of truck.
Machine Type : HG-1001DT
Operation : Foot Pedal or Pneumatic & Foot Pedal in Twin Operated
Application : Awning / Canopy / Shades / Tents / Marquee
PE film of greenhouse - High Frequency Welding Machine
High frequency welding is apply to the material of PVC or over 30% of PVC Fabric.
Output Power : 4kw / 5kw / 8kw / 10kw
Operation : Foot Pedal or Pneumatic & Foot Pedal in Twin Operated
Application : PP/PE/PVC/PEP film welding ,aluminum foil bag sealing
PVC、PU、TPU、PEVA、PET-G all can be processed, for example, Foot Wears, Trade Mark, Raincoat, Rain-Canvas, Umbrella, Inflatable Toys, Cushion for Vehicle & Motorcycle.
Spec / Model
|
HG-401DT
|
HG-501DT |
H.F Output Power
|
4 KW
|
5 KW |
In-put Power
|
6.5 KVA
|
8.5 KVA |
Frequency
|
27.12 MHz
|
Power Source
|
1φ/3φ AC220V/380V/415V/440V 50Hz/60Hz
|
Oscillation Tube
|
E3062
|
7T85RB
|
Rectifier
|
Silicon Rectifier
|
Press Stroke
|
50mm
|
Throat Deep
|
28cm
|
Distance Between Upper & Lower Electrode
|
140mm
|
Lower Electrode
|
350 X 700 mm
|
Arc Suppressor
|
RELAY
|
Operation
|
Foot Pedal / Pneumatic in Twin Operated
|

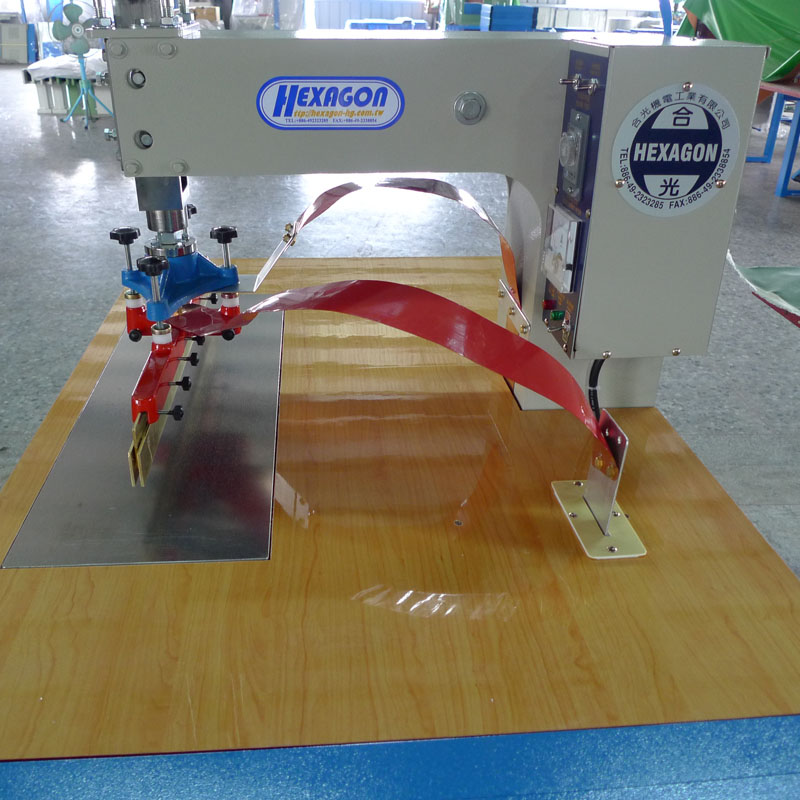

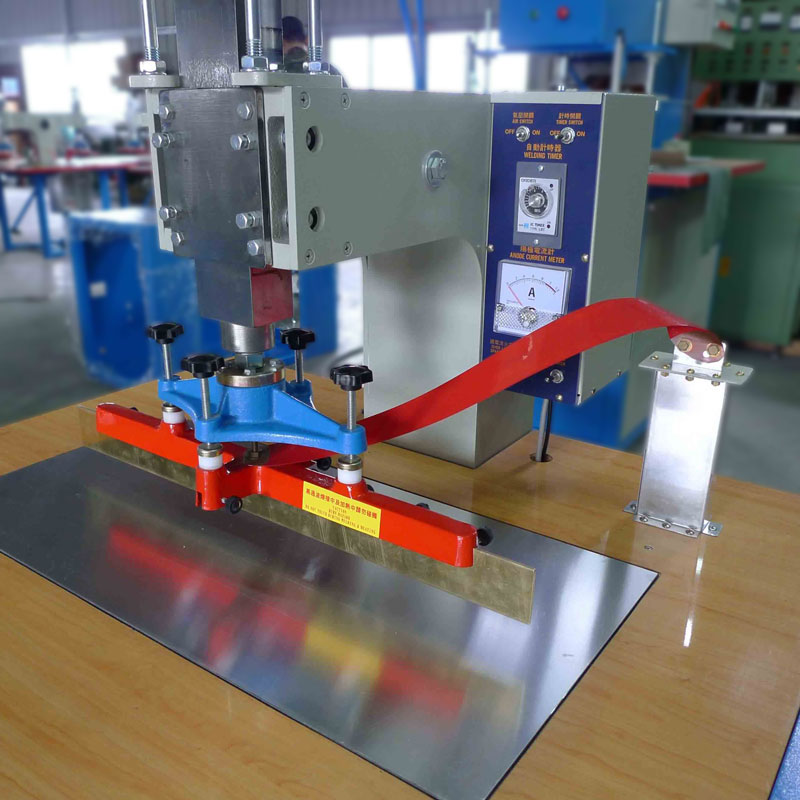

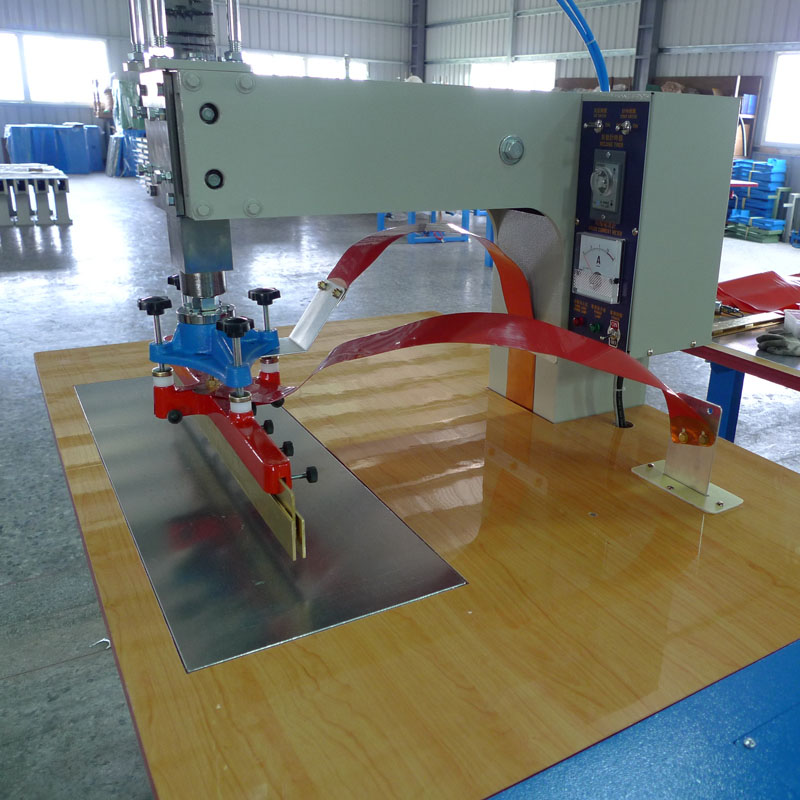

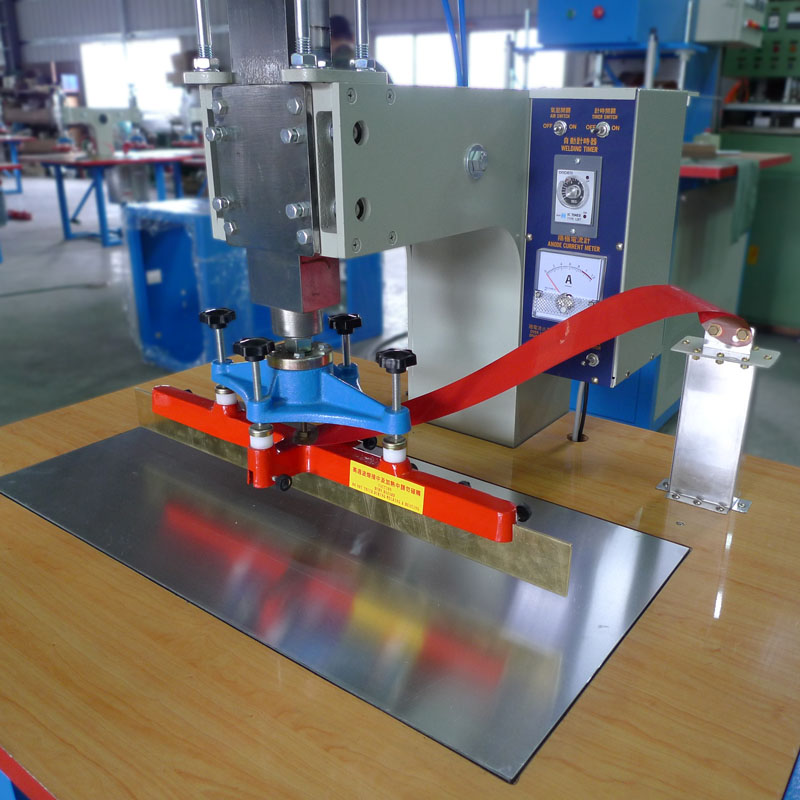

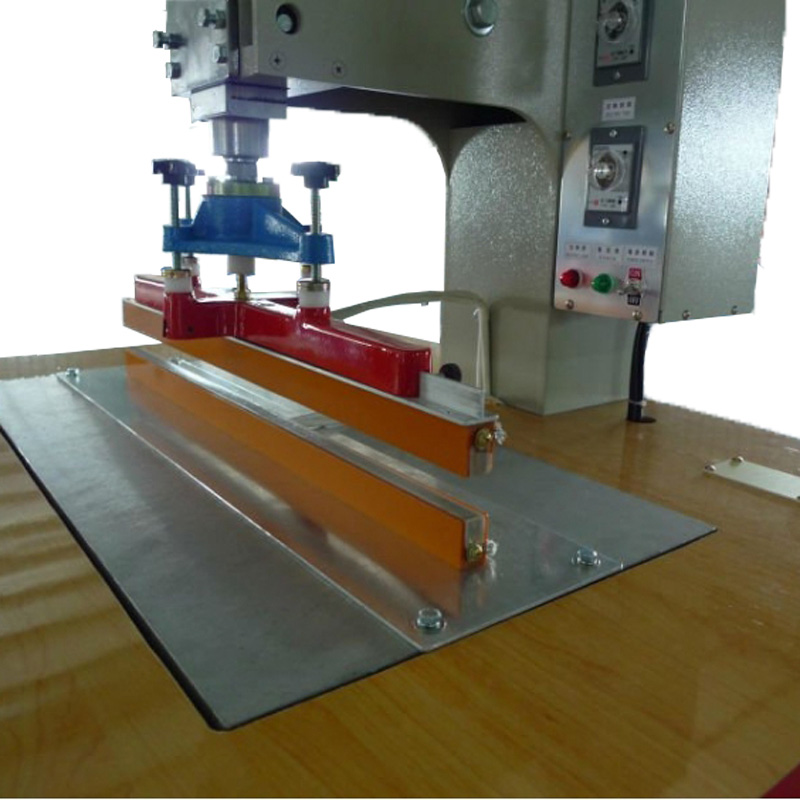

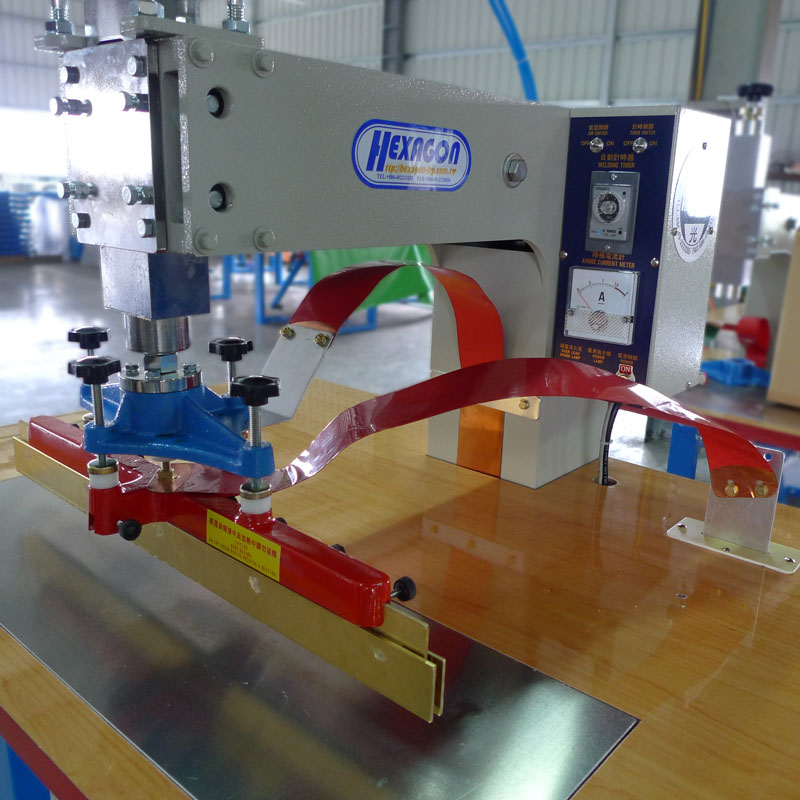

The DT type High Frequency Plastic welding machine is made especially for Canvas Welding. This machine has proceed a special treatment to deal with high-frequency interfere with electronic devices such as television broadcasts; it is suitable for Canvas shops which are located in residential area. The principle of the high-frequency plastic welding machine is particular. The heating method is by heated the molecules inside the product, so that the materials are uniformly heated. After welding process, the molecular structure of welding point became stronger, absolutely waterproof and cannot be torn by hand.
