Characteristic
‧It has a large table space that make it easy for operators to alternate products.
‧The high welding efficiency and is suitable for larger products.
‧Designed with the ergonomics that can reduce physical fatigue from long-term operation.
‧It has a new design and operates with high stability.
‧High-frequency output is stable, and weld smoothly.
‧The welds are made with spare parts imported by advanced countries with high quality.
‧It is equipped with ARC suppressor to protect molds.

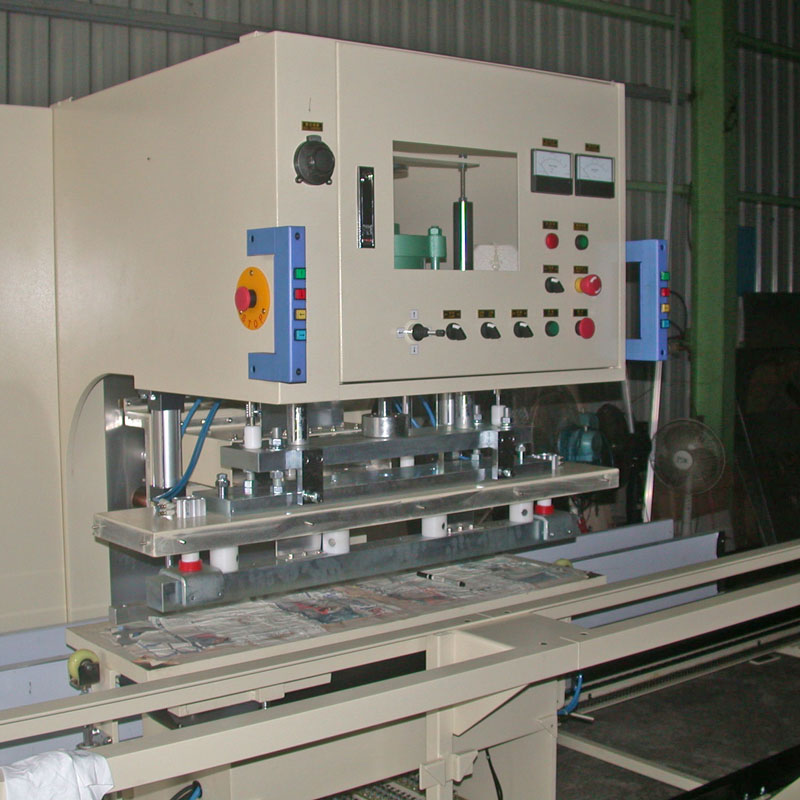

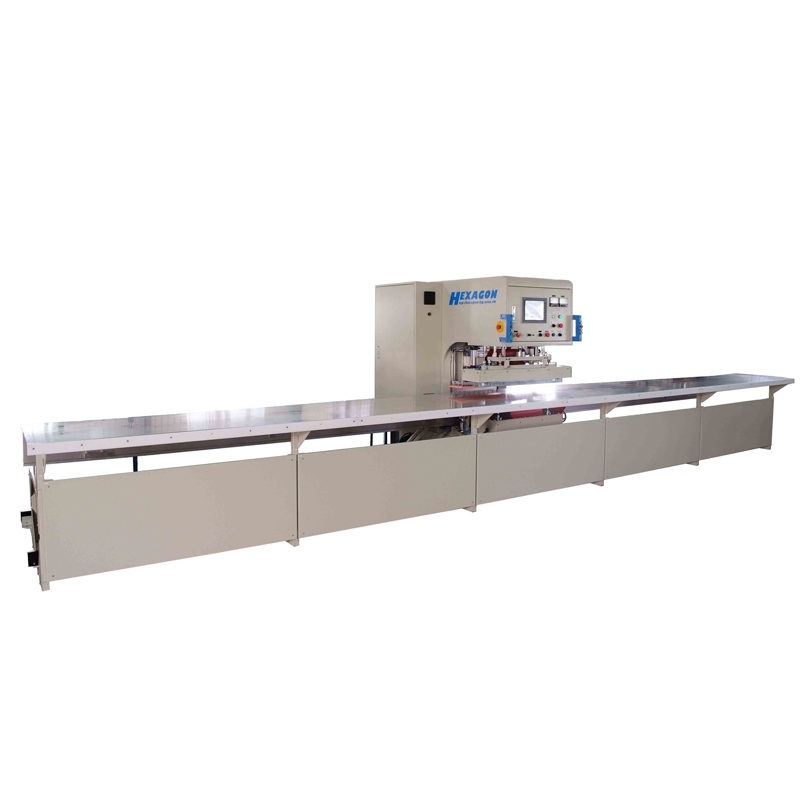

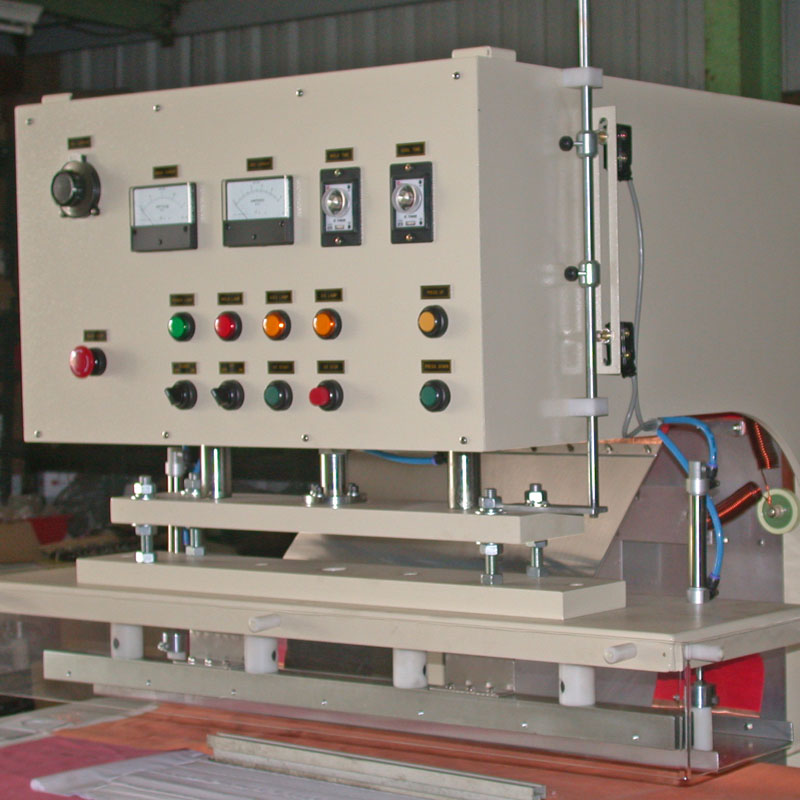

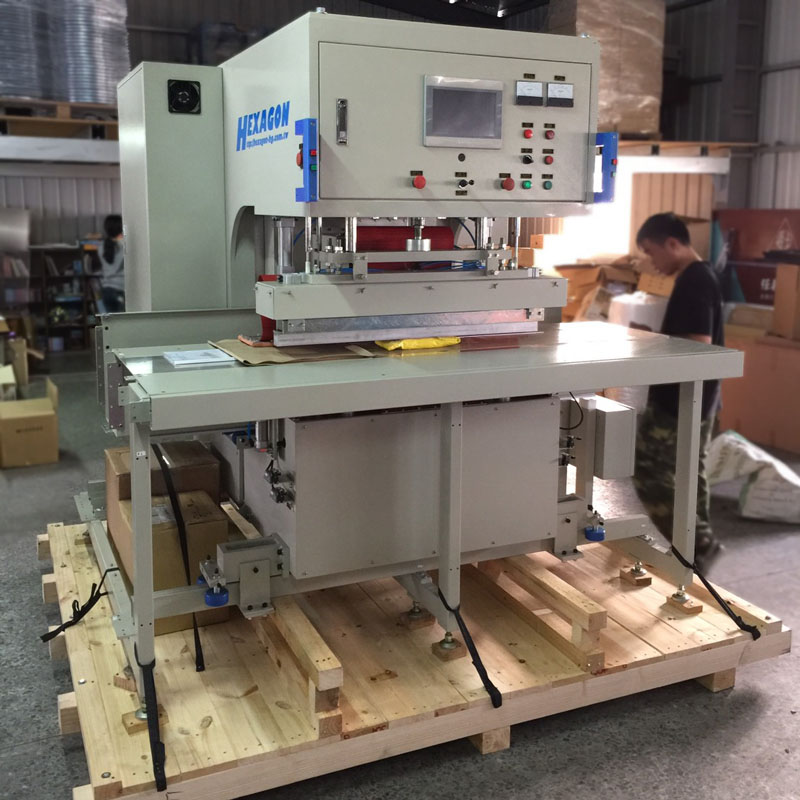

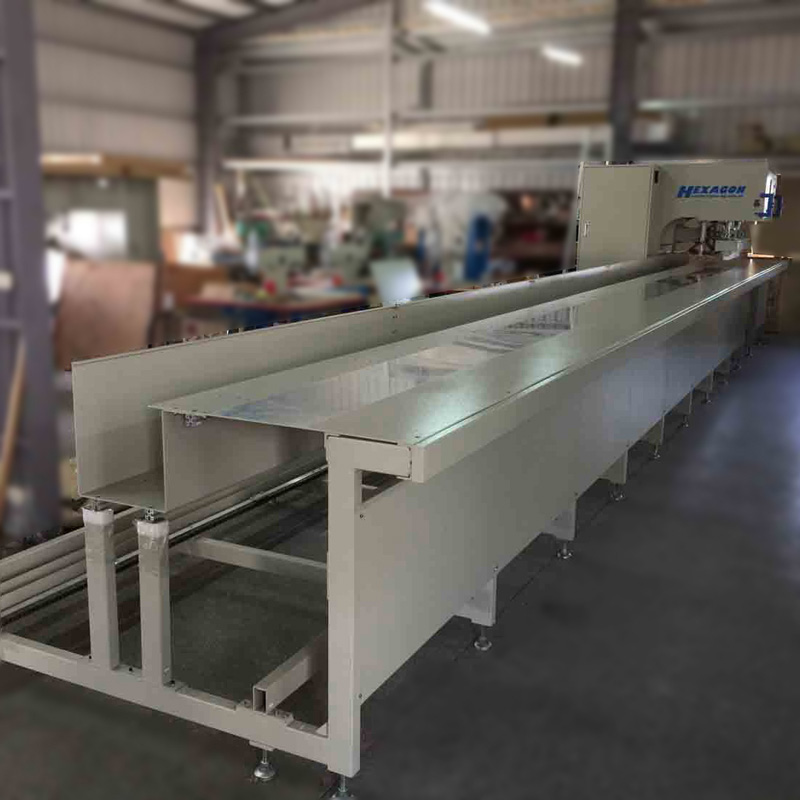

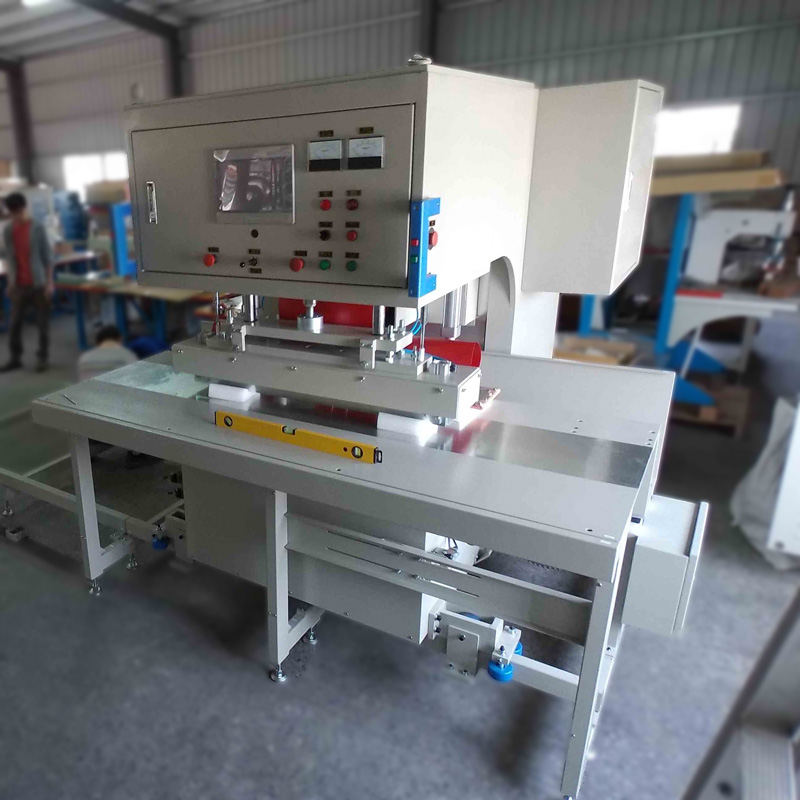

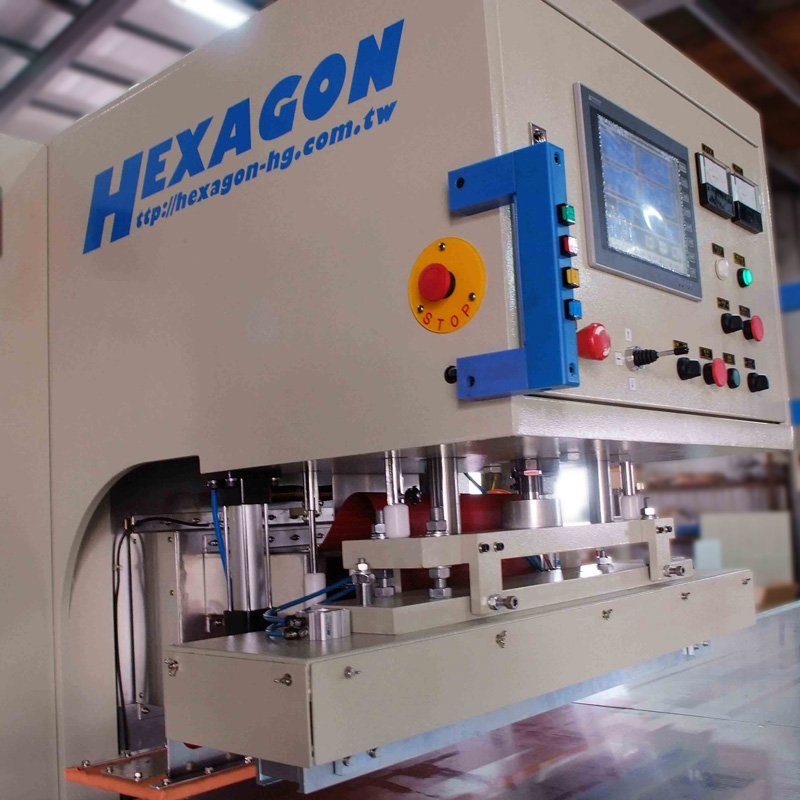

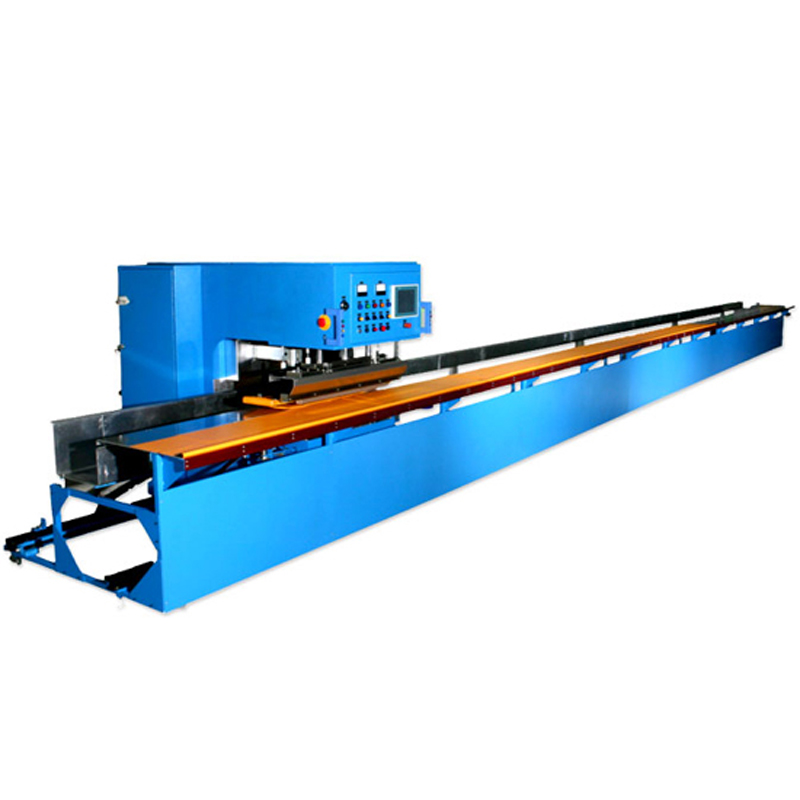

Large Membrane Structure - HF Canvas Welding Machine
High frequency welding is apply to the material of PVC or over 30% of PVC Fabric.
Machine Type : HG-1506M
Operation Method : Pneumatic and PLC interface
Application : Large-scale PVC canvas, truck canvas, sun sail and rain sail, etc.

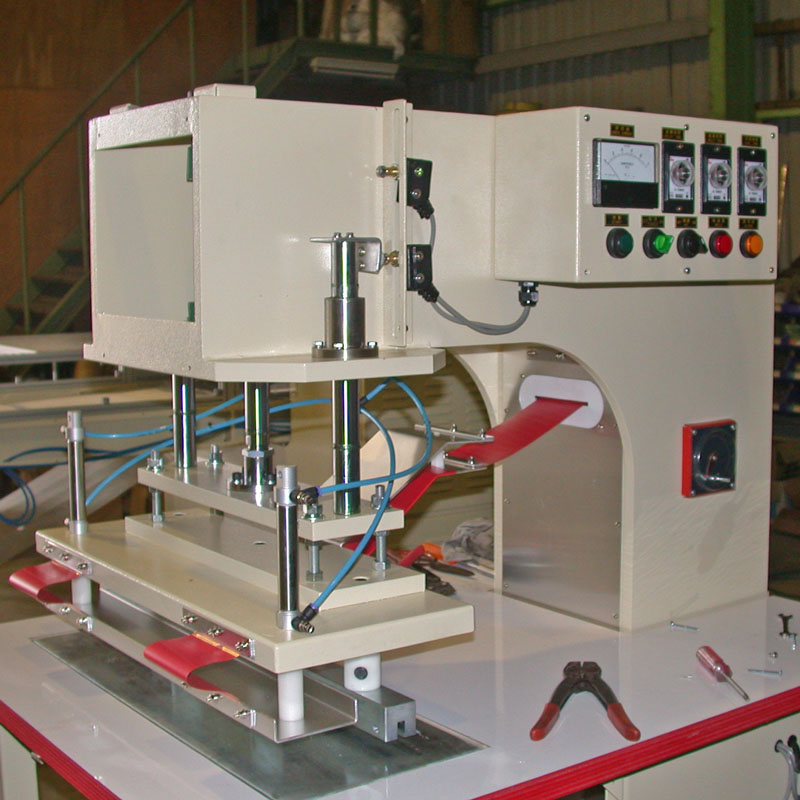

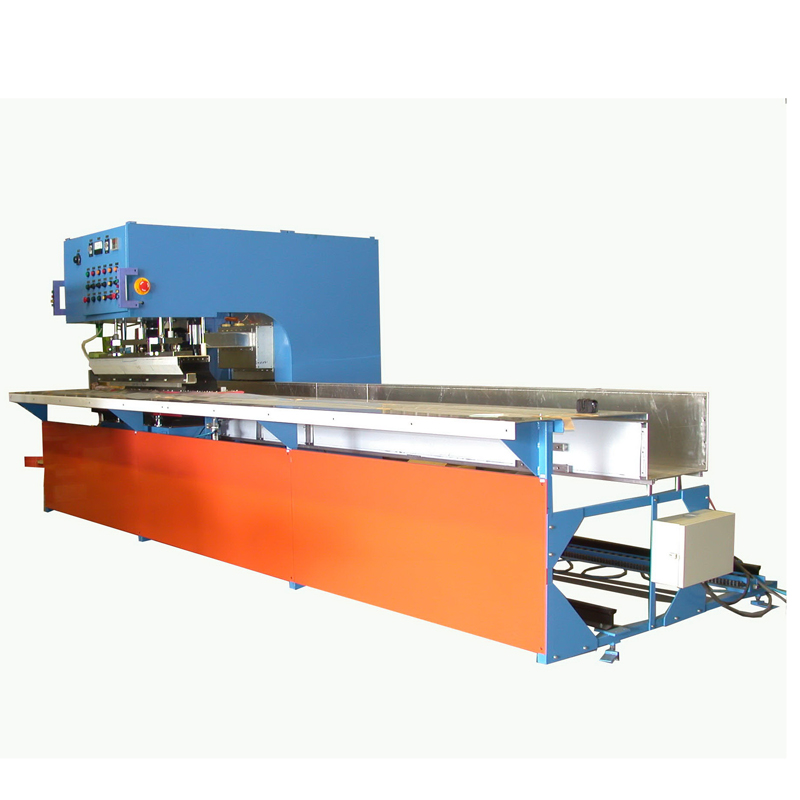

Banner Welding – RF welding machine
For processing various kinds of truck tents, canvas of agricultural, large PVC canvas, computer advertising canvas, and etc.
Machine Type : HG-1506M
Operation Method : Pneumatic and PLC interface
Application : PVC canvas, Membrane structure, and truck tent.
It is especially designed for procession on various for tent of truck, canvas of agricultural, canopy,
large of PVC canvas, computer advertising canvas.
| Spec / Model |
HG-1006M
|
HG-1206M
|
HG-1506M
|
HG-2506M
|
|
H.F Output Power
|
10 KW
|
12 KW
|
15 KW
|
25 KW
|
|
In-put Power
|
20 KVA
|
24 KVA
|
30 KVA
|
55 KVA
|
|
Frequency
|
27.12 MHz
|
|
Power Source
|
3φ AC220V/380V/415V 50Hz/60Hz
|
|
Oscillation Tube
|
E3069
|
E3130
|
8T85RB
|
ITL12-1
|
|
Rectifier
|
Silicon Rectifier
|
|
Distance B/T Upper & Lower Electrode
|
80mm
|
100mm
|
|
Electrode Holding Plate
|
50mm(W) X 800mm(L)
|
50mm(W) X 1000mm(L)
|
|
Pressure System
|
Pneumatic
|
|
Moving Distance
|
10M(The Max. Working Range 8.8m)
|
|
Are Suppressor
|
NL5557
|
|
Aligning System
|
Laser Alignment (Optional)
|
